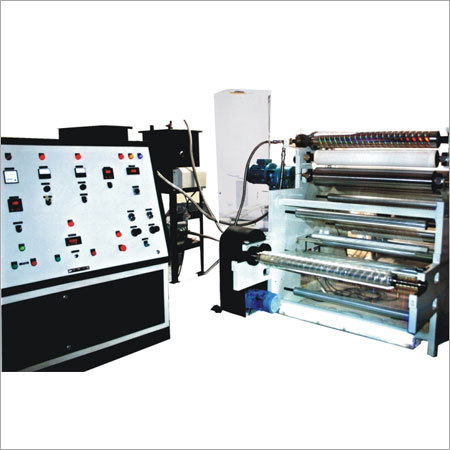

Soft Hologram Embossing Machine

Soft Hologram Embossing Machine
Soft Hologram Embossing Machine
Product Code : Wide Web 1050mm
Product Description

Our efforts are highly applauded by our respected clients and they can avail with us an outstanding range of Soft Hologram Embossing Machine. The 0ffered machine has been designed for mass production of holographic films up-to 1050mm, to meet the ever growing demand for flexible packaging and gift wraps and decorative items like wall papers, carry bags and other sophisticated gift and consumer products. With utmost care, the provided machine is manufactured in compliance with set international quality standards at our well-equipped manufacturing unit using high grade components. To fulfill the varied need of the clients, this Soft Hologram Embossing Machine is made available at reasonable rates.

Features:

  • Robustness

  • Noise-free operation

  • Trouble-free functionality

  • Long-service life



Wide Web Embossing Machine

  • This equipment has been designed for Mass Production of Holographic Films up-to 1050mm, to meet the ever growing demand for Flexible Packaging and Gift Wraps and Decorative Industries like Wall Papers, Carry bags and other sophisticated Gift and consumer products.
  • The Line is equipped with Sophisticated Programmable Controls for precise adjustments of various production parameters like Embossing Pressure, Temperature, Line Speed etc. to ensure production of Holographic Films of the highest standards.
  • While designing the Machine, particular attention has been given to the Conditioning and Re-Conditioning of the Film during the Embossing Process, in order to obtain the optimum Embossing Results.
  • Precise Temperature Control of the Embossing Roller, which is a pre-requisite for quality embossing has been achieved by a central Oil Heating System which maintains a uniform temperature throughout the length of the Embossing Roller, on a real time basis.
Roll Width
1050 mm
Standard Embossing Width
1016mm, 40" Approx
Estimated Shim Life
Up-to 50,000 Linear Meters
Film Thickness
12µ to 50µ
Rewinding Roll Dia
800 mm max.
Unwind Roll Dia
800mm  max
Core Dia
76mm / 152mm
Automatic Temperature Control
Digital
Embossing Speed
Up to 80 Meters / minute
Voltage
380 Volts - 50 Hz
Peak Power
30 KW
Digital Speed Indicator,Counter & Embossing Pressure Controller
Included
Roller Pressure Control System
Pneumatic
Rewinding Clutch System
Electromagnetic
Unwinding Brake System
Electromagnetic
Weight
3500 Kg(Approx)
Appox. Dimension
2m X 4m X 3.7m
