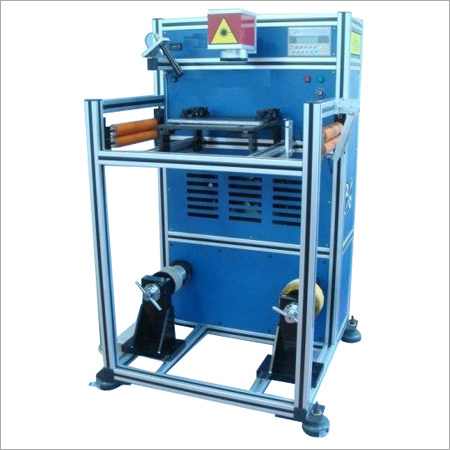

Laser Engraving Machine

Laser Engraving Machine
Laser Engraving Machine
Product Code : HOML-LMM-200
Brand Name : NARROW-WEB-MACHINERIES
Product Description

Backed by our state-of-the-art production facility equipped with latest machines and tools, we are offering our clients a superior quality range of Laser Engraving Machine. Designed for creation of Wide Web diffraction pattern shims for embossing, the provided machine is available as a stand along unit or in combination with holographic origination and production equipments. The offered machine is manufactured by our professionals using quality approved components and advanced technology. Available in different specifications and models as per the requirements of the clients, this Laser Engraving Machine is precisely engineered and is made available at pocket friendly prices.

Features:

  • Robust construction

  • Long service life

  • Low power consumption

  • Trouble-free functionality

Wide Web RECOMBINING MACHINE:-

Detailed Specifications of Equipment:

The Hologram Recombining Machine is designed for creation of Wide Web diffraction pattern shims for embossing. Pulsed energy embossing from Nickel Shims into a thermoplastic surface, enables high fidelity replication of surface relief holographic and diffractive information. The recombining system is available as a stand along unit or in combination with holographic origination and production equipments. The below mentioned specification are for Model: INFINITE – 20. Custom machines are available for specific applications.

Technical Specification:

  • Model : INFINITE – 20

  • Recombining Area : 1000 mm X 1000 mm

  • Recombiner plastic Sheet area : 1070 mm X 1020 mm

  • Recombining Speed : 10 to 20 strokes/min (Max) (Depends on Nickel master size and printing material)

  • Maximum Recombining unit (Nickel master

  • Head/Holder) : 50 mm X 50 mm

  • Maximum sys oil : 20 Mpa

  • Working Pressure (Hydraulic System) : 50 Tons max

  • Accuracy of Resolution : +/- 10 micron

  • Chilling System : Inbuilt with machine

  • Heating System : Electrical Heater controlled by

  • Microcontroller based Temperature Controller

  • Power Required : 3 Phase 415 VAC 50 Hz

  • Power Consumption : 15 KW approx

  • Dimension of Machine : 2000 mm X 2500 mm X 1500 mm

The Image transferring system of recombining from small Nickel master to Thermoplastic surface, step by step with required space shifting will be controlled by PC with Windows based software. All required software & PC will be provided with the machine.

Equipment with laser (Diode-Pumped Fiber Laser) for hologram marking etc on the Holographic sheets, with marking field size up to 300 mm x 300 mm and having latest Pentium 4 computer & required softwares and attachment for marking holograms in sheets to sheets and roll to roll form.

Accessories

Software for automatic equipment including X - Y table, Rotary Chucks - 1 Pc

Specifications for Equipment with laser (Diode-Pumped Fiber Laser) for hologram marking:

1. Operating Wave Length: 1064 nm

2. Pulse width: < 150 ns

3. Pulse Repetition Rate: > 20 KHz

4. Multimode Output Fiber: Included

5. Output Collimated Beam: Included

6. Forced Air Flow Cooling: Included

7. Low Power Consumption: < 750 W

8. Beam Shape: Gaussian

9. Speed: 30 Per Minute (Max)

10. Galvo Scanner For High-Speed Marking: Included

11. Marking field: Up to 300mm x 300mm

12. Marking accuracy: Better than 0.050 mm

13. Pilot Laser for “Field Marking”: Can be adjusted 1W to 10W

14. Guaranteed for 50000 hrs. Operation of laser.

15. Weight: 700 Kg (Approx)

16. Approx Dimensions: 2 ft X 2ft X 2.5 ft

Note: It is mandatory to use a stabilizer for the machine. (AC recommended)

Other Features:

1. Computer with Window XP operating system:

a. Latest Pentium 4 computer with monitors 2000 operating system. Flat screen TFT monitor.

b. Window based software and also offers direct screen software which accepts DXF, WMF, JPG, BMP or HPGL and more files for marking, can accept output of any popular software like Corel, AUTO CAD 2000 etc.

2. Laser Marking Software:

Advanced versions of following features:

a. Graphical user interface on screen display of marking field and object.

b. Multiple layer including background layers (for operator instruction display of party Image, individual layer selection for marking etc.)

c. Easy positioning, sizing and orientation of objects to be marked (either by mouse function or properties boxes.)

d. Importing both vector based and bitmap file formats directly into marking software, input Directly from scanner.

e. Increased Test formats, including true type fonts, 23 bar code formats and 2D matrices.

f. Variable text including keyboard input, detail time coding, and scanner of other RS232 input and alphanumeric serialization.

g. Easier interfacing to automation equipment including X-Y table, rotary chucks and External I/O lines. (Optional)

h. Marking software, laser disabled for offline programming is also supplied.

3. Included is vertically adjustable ‘Z’ axis platform, which can move job fixtures, Plates, objects (max. 25Kg. Wt.) into focus field of Galvo. Maximum Z travel is 300mm.



HOLOGRAPHIC ORIGINATION & MACHINERIES LIMITED
