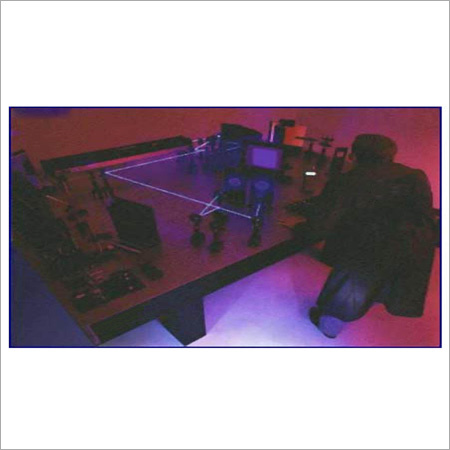

Hologram Master Shooting Lab

Hologram Master Shooting Lab
Hologram Master Shooting Lab
Product Code : 02
Product Description

Owing to our expertise in this domain, we are engaged in manufacturing, exporting and supplying Hologram Master Shooting Lab. Offered lab performs various applications such as microtext, nanotext, hidden image, stereogram, kinogram, special effects, animation, 3D Object Shooting, image transfer copying in both 3D And 2D. Our diligent professionals design the provided lab as per set international quality standards using finest quality components. Further, it is tested thoroughly on different parameters to ensure its functionality at clients’ end. Our valuable clients can avail this Hologram Master Shooting Lab from us at competitive prices.

Features:

  • Equipped with high-tech machines

  • Spacious

  • Compact

  • Sustained with Appropriate Atmosphere

Hologram Master Shooting Lab

2D/3D, 3D, Flip-flop, Microtext, Nanotext, Hidden Image, Stereogram, Kinogram,  Special Effects, Animation.3D Object Shooting, Image Transfer Copying in  Both 3D And 2D. Turnkey Equipment Consists Of

OP TO MECHANICS

Description of goods

QTY

Honeycomb Tabletop Size 10ft.X4ft.

1

Vibration Isolation Support with 6 Pneumatic Leg

1

Mirror Mount for 1" Dia. Mirror with Post Holder

15

Spatial Filter Assembly with Post, Post Holder and Magnetic Base

8

10x with Pin Hole

2 Nos

20x with Pin Hole

2 Nos

40x with Pin Hole

2 Nos

50x with Pin Hole

2 Nos

Kinematic & Rotary Mount alongwith Post and Post Holder For Variable Circular Beam Splitter

2

Horizontal and Vertical Beam Steering Device Lens Mount for Lens 300mm. Dia. 800mm. Focal Length

1

Lens Mount for Lens 300mm. Dia. 800mm. Focal Length

1

Lens Mount for Double Convex Lens of 150mm. Dia. 300mm. Focal Length

1

Lens Mount for Lens 300mm. Dia. 800mm. Focal Length

1

Lens Mount for Lens 150mm. Dia. 400mm. Focal Length

1

Diffuser Plate Holder for 250mm. X 75mm

2

Holder for 7" X 7", 3mm. Thick Glass

2

Software Controlled Automatic XY Plate Holder with facility for Holding the Photosensitive Plate, and doing all Exposure Mannuers. Also Provided with Mannuel Control Facility

1

Automatic Shutter Control

2

Heavy Duty Post- 400mm

4

Heavy Duty Post - 200mm

2

2 Base Plate for Heavy Duty Post

6

Mirror Mount Bim - 25

2

Table Clamps

25

Clamp for Mirror Mount

15

Extra Large Mounting Post Clamp

4

Post 16 mm. Dia - 150 mm.

4

Post 16 mm. Dia - 125 mm.

4

Post 16 mm. Dia. - 100 mm.

4

Post 16 mm. Dia. - 75 mm.

4

Post 16 mm. Dia. - 50 mm.

4

OPTICS

Microscope Objective 50x, for 442nm Wavelength and 125mw Max Power, and Suitable Pinholes for Spatial Filter Assembly

2

Microscope Objective 40x , for 442nm Wavelength and 125mw Max Power and Suitable Pinholes for Spatial Filter Assembly

2

Microscope Objective 20x, for 442nm Wavelength and 125mw Max Power and Suitable Pinholes for Spatial Filter Assembly

2

Microscope Objective 10x , for 442nm Wavelength and 125mw Max Power and Suitable Pinholes for Spatial Filter Assembly

2

1” Dia. Mirror , Dielectric Coated for Max Ref @442nm

15

Variable Circular Beam Splitter, for 442nm Wavelength

2

Cylindrical Lens with 10f Focal Length

1

Cylindrical Lens Holder

1

300mm. Dia. Plano Convex Lens 800mm. Focal Length, for 442nm, available in both Bk 7 & Lightweight Plastic . Lenses can be supplied in any Material for the Customer who has definite requirement and specification

2

150mm. Dia. Double Convex Lens 400mm. Focal Length available in both Bk 7 & Lightweight Plastic. Lenses can be supplied in any Material for the Customer who has definite requirement and specification

1

150mm. Dia. Plano Convexlens 300mm. Focal Length available in both Bk 7 & Lightweight Plastic . Lenses can be supplied in any Material for the Customer who has definite requirement and specification

1

Laser and Accessories

Helium Cadmium Laser 125 Mw, 441.6nm.( Kimmon, Japan) with Control Unit and Power Supply.

1

Ups System for Laser Unit

1

Dimension: 10Ft. X 4 Ft. X 3Ft. (Approx)

Weight:750 Kg. (Approx)
